Gemini A Hybrid 2D/3D Unity Game

The main challenge of Gemini was creating a visually cohesive game with a small team, limited production time, and a style that required both 2D and 3D assets to feel like they belonged in the same world. We wanted the game to have a pixel-art identity, but we also wanted the flexibility of a 3D Unity environment for camera movement, level composition, lighting, and gameplay implementation.

This created a technical art problem: how do we build a game that feels visually intentional without needing to hand-paint every asset from scratch? The solution was to build a production pipeline that combined AI-assisted visual exploration, manual refinement, 3D asset generation, shader development, animation implementation, and in-engine rendering tools.

My focus was to bridge the gap between visual direction and implementation. I needed to make sure the assets, shaders, effects, prompts, animations, and gameplay systems worked together inside Unity, instead of existing as separate art or code pieces.

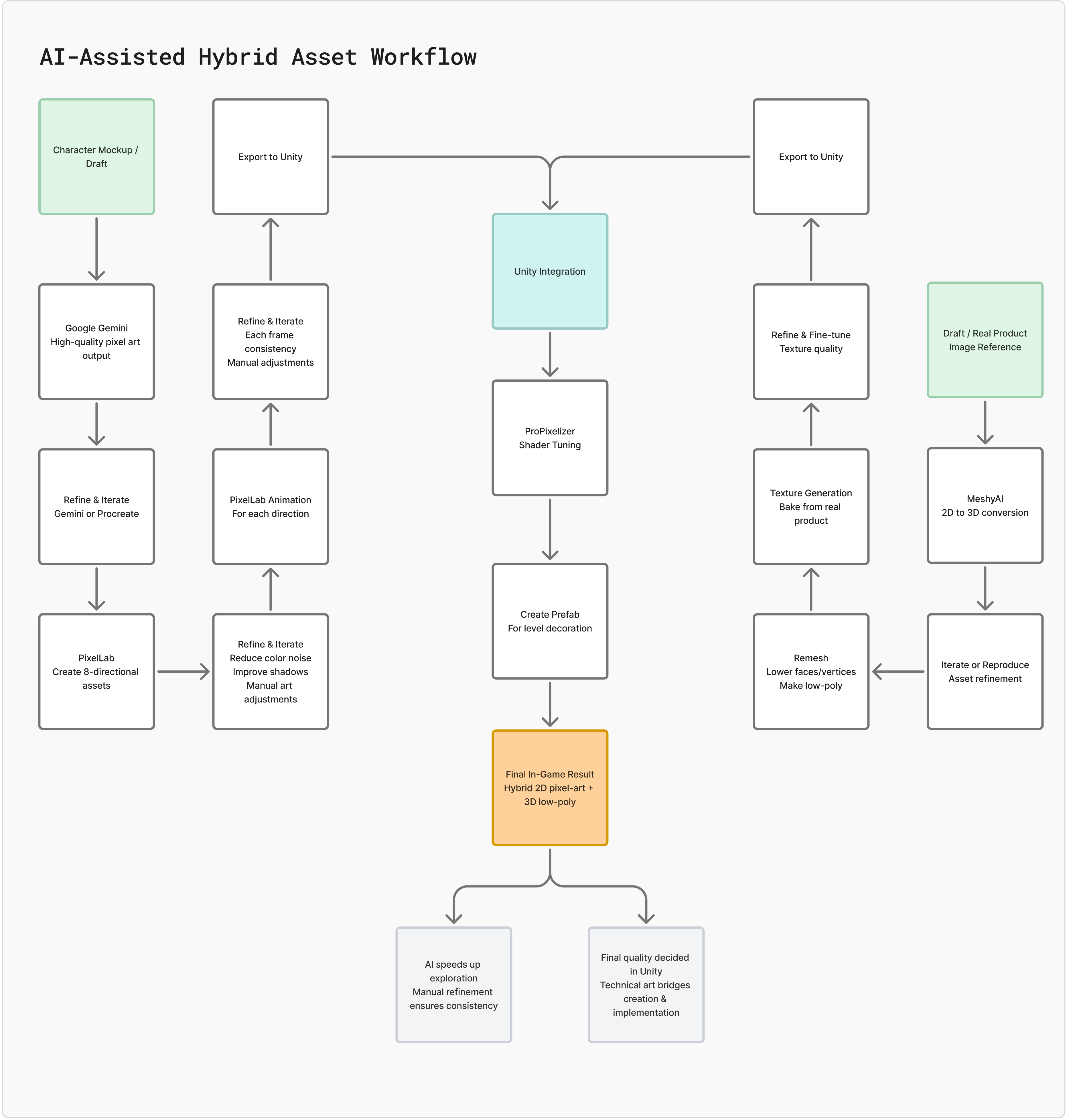

One of my biggest contributions to Gemini was developing a visual pipeline that allowed us to create stylized assets without depending entirely on traditional hand-painted production. I explored AI-assisted tools such as PixelLab for 2D pixel-art and animation directions, and Meshy for generating 3D assets from 2D image references. These tools helped speed up early exploration, but the final quality still depended on manual selection, cleanup, refinement, and Unity implementation.

After generating or exploring visual options, I refined the assets manually in Aseprite. This included cleaning pixel frames, adjusting silhouettes, improving animation readability, and making sure the assets matched the game's visual direction. For 3D assets, I evaluated whether the generated forms could work inside the low-poly environment, then brought them into Unity and adjusted scale, material setup, and visual consistency.

The strength of this pipeline was that it gave the team a practical way to create a larger visual world with limited time. Instead of treating AI tools as a final-output solution, I used them as part of a technical art workflow: generate, select, refine, test in-engine, adjust, and integrate.

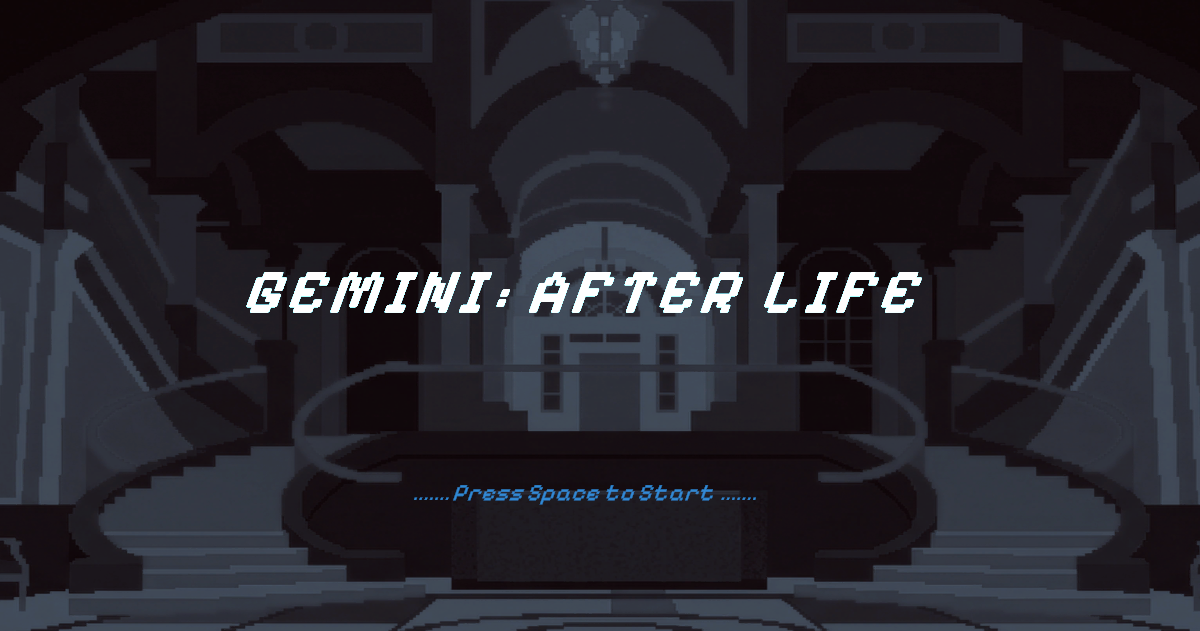

To make the 2D and 3D elements feel visually connected, I worked on shader and VFX systems that supported the game's stylized direction. ProPixelizer played an important role in giving the 3D world a pixelated screen-space look, helping the low-poly environment sit closer to the pixel-art characters and effects.

I also created and adjusted custom shader effects for gameplay and readability. These included visual treatments for occlusion, see-through moments, tether feedback, interaction moments, and other in-game effects. The goal was not only to make the game look more polished, but to make important gameplay states easier for players to understand.

This was where my technical artist role became most important. I had to think about visual style, player feedback, engine constraints, and implementation at the same time. A shader or effect could not just look interesting in isolation. It had to work during gameplay, support the camera angle, fit the pixelated visual language, and communicate useful information to the player.

The tether mechanic was one of Gemini’s key gameplay systems, and my contribution focused on making it visually readable in-game. Beyond functioning as a mechanic, the tether needed clear feedback so players could understand distance, connection, and state changes during gameplay.

I implemented the tether visual effect in Unity and designed how the connection appeared on screen, how it responded to player movement, and how it communicated the relationship between linked characters or gameplay objects. My goal was to make the mechanic feel expressive and understandable rather than purely mechanical.

This work reflects how I approach technical art: not just adding visuals after a system is built, but using visual feedback to support gameplay clarity. By connecting motion, timing, and effects with gameplay behavior, I helped players understand the tether through what they saw and felt during play.

I also worked on enemy detection and chase feedback. This system needed to make enemy behavior clear to the player without breaking the atmosphere of the game. If the feedback was too subtle, players might not understand when they were being detected. If it was too obvious, it could weaken the mood and tension.

My goal was to create feedback that supported both gameplay readability and emotional pacing. I worked on the logic and presentation of enemy states so the player could recognize danger, react to pursuit, and understand when the situation had changed.

This part of the project helped me practice designing feedback systems from both a developer and player-experience perspective. The enemy system was not only about whether the code worked. It was about whether the player could read the state of the game quickly enough to make decisions.

Gemini also required interaction, animation, and narrative systems that helped players understand what they could do and how their progress affected the story. I worked on pixelated interaction prompts, animation implementation, narrative UI moments, memory fragment progression, and cutscene logic for the intro and ending sequences.

The interaction prompts needed to feel like part of the game world rather than generic UI elements. I designed and implemented prompts such as "Press E" interactions with a pixelated visual treatment so they matched the rest of the game's style. These prompts helped guide the player while keeping the screen language consistent with the visual direction.

For the narrative and progression systems, I helped implement memory fragment logic and true ending conditions. This connected player actions to story outcomes, giving the game a stronger sense of progression and consequence. I also supported intro and ending cutscene logic, helping the project feel more complete as a playable experience rather than only a prototype.

Because Gemini used a 3D environment with a stylized pixel-art presentation, camera behavior and scene readability were important technical challenges. The camera needed to support exploration, atmosphere, and composition while still allowing players to understand where they were and what they could interact with.

I worked on camera-related behavior and scene readability solutions, including camera angle handling and visual support for occlusion. These systems helped reduce moments where important gameplay information could be hidden by the environment.

This was another example of how technical art and gameplay development overlapped in the project. A camera problem is not only a code problem or a visual problem. It affects navigation, readability, atmosphere, and player confidence. My work focused on making the camera and visual systems support the game experience instead of fighting against it.

One of the biggest challenges was maintaining visual consistency across different types of assets. Gemini used 2D pixel-art characters, generated or refined animation frames, 3D low-poly assets, shader effects, and screen-space pixel rendering. Each part could easily feel like it belonged to a different visual style if it was not carefully adjusted.

To solve this, I treated the project as a pipeline problem. I constantly compared assets in-engine, adjusted them based on the final Unity view, and used ProPixelizer and shader treatments to bring the visuals closer together. This taught me that technical art is not just about making individual assets. It is about building rules, workflows, and implementation methods that help the whole game feel consistent.

Another challenge was working with AI-assisted assets. AI tools were useful for speed and exploration, but the output was not automatically game-ready. Some assets needed cleanup, some needed stronger silhouettes, and some did not match the game's style once they were tested in Unity. I had to decide what was usable, what needed manual refinement, and what should be discarded.

This process helped me understand that the value of AI in game production is not simply generation. The real value comes from art direction, technical judgment, cleanup, integration, and iteration. As a technical artist, I had to turn rough visual possibilities into something that worked inside a real game.
